Predictable Class II Back-to-Back Composite Restorations with Evanesce Bulk Cure

Achieving predictable, esthetic, and functional Class II composite restorations remains a common clinical challenge, particularly in cases requiring back-to-back contacts. This case presentation highlights the integration of Evanesce Bulk Cure (Clinician’s Choice), the Quad Matrix System (Garrison Dental Solutions), and OptiBond FL (Kerr). Particular emphasis is placed on the  importance of rubber dam isolation and employing the Total Etch Technique to maximize bond strength and optimize clinical outcomes.



A 38-year-old patient presented with recurrent decay on the distal of tooth #14 and the mesial of tooth #15 (Fig. 1). Both lesions were moderately sized and required replacement of old composite restorations. The treatment plan included direct composite restorations using a total-etch adhesive protocol.

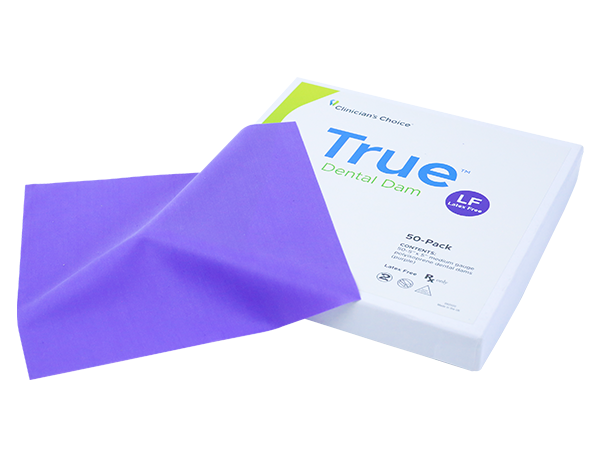

True Dental Dam (Clinician's Choice) was placed to isolate the operative field (Fig. 2). Proper  Isolation remains a cornerstone of adhesive dentistry. It protects the field from contamination with saliva, blood, and moisture, which can significantly compromise the integrity of the adhesive interface. Additionally, a rubber dam improves visibility and access, allowing for precise technique execution and patient safety.

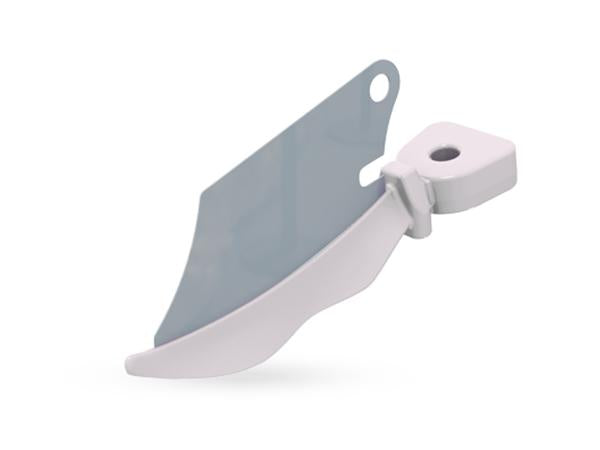

An important clinical tip is to use rubber dam clamps with floss ligatures and WedgeGuards (Triodent) during interproximal preparation to ensure secure and effective isolation around posterior teeth as well as protecting the adjacent teeth from inadvertent damage (Fig 2).

FIG. 1
Initial examination reveals adjacent Class II
carious lesions requiring restoration.

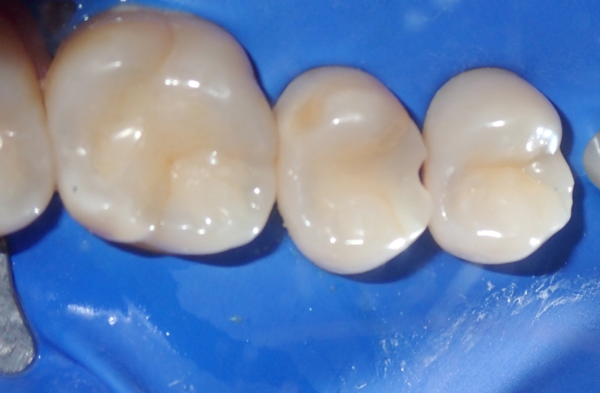

FIG. 2
A rubber dam ensures a dry field, preventing
contamination and improving visibility during the
procedure.

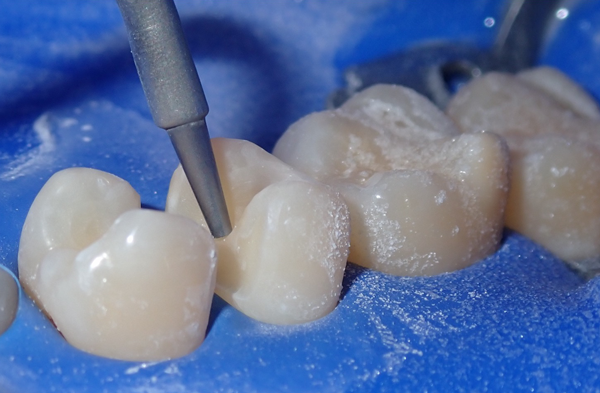

FIG. 3
Removal of carious tissue and old restorations,
creating clean preparations ready for restoration.

Total Etch Technique

Once the old restorations and recurrent caries were removed, pumice and air abrasion were used to remove the plaque and biofilm from the teeth (Fig 3). A Total Etch
Technique was employed to enhance micromechanical retention to enamel and dentin. The process included:

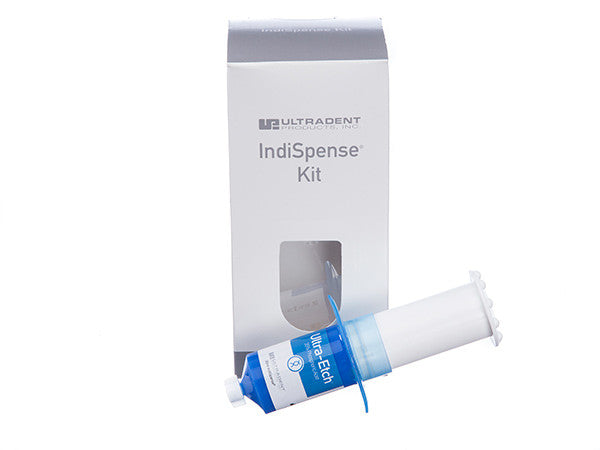

1. Application of Ultra-Etch (Ultradent) 37% phosphoric acid etch: 15-20 seconds on enamel, 10-15 seconds on dentin (Fig. 4).
2. Thorough rinse and gentle air-drying to maintain moist dentin.

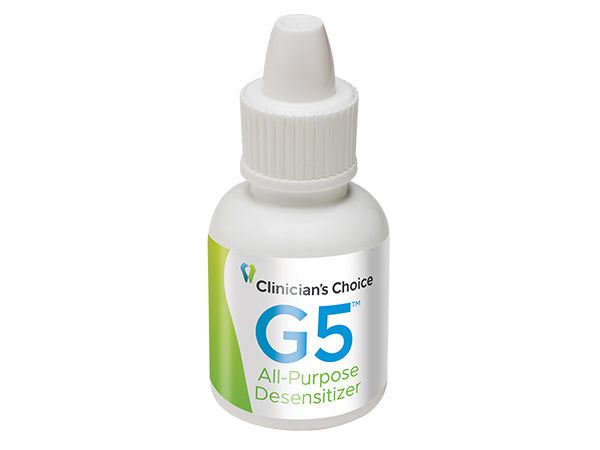

3. Re-wet the dentin by scrubbing with G5 All-purpose Desensitizer (Clinician’s Choice) for 10 seconds and blotting any excess.
4. Application of OptiBond FL (Kerr):
◦ Primer applied and scrubbed for 15 seconds. Be generous with the primer as this step is key in preventing post-operative sensitivity.
◦ Gentle air thinning of the primer is followed by application of adhesive resin.
◦ Light-cured for 20 seconds

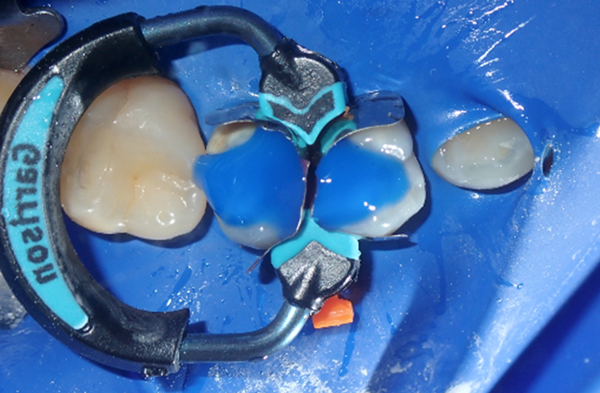

FIG. 4
Total Etch Technique involves etching enamel for 15-20 seconds and dentin for 10-15 seconds,
followed by thorough rinsing. Re-wet thepreparation with G5 (Clinician's Choice).

OptiBond FL, a three-step total-etch adhesive, has consistently shown high bond strength and clinical longevity in posterior composites. Its primer-adhesive design optimizes dentin penetration, formation of the hybrid zone and enamel bonding1.



One of the most difficult aspects of multi-surface posterior composites is achieving tight, anatomical interproximal contacts—especially in back-to-back Class II restorations. The Quad Matrix System was selected for its innovative quadrant approach. The innovative wedge design ensures a tight gingival seal while the ring design creates a separation force that leads to tight contacts on both teeth.

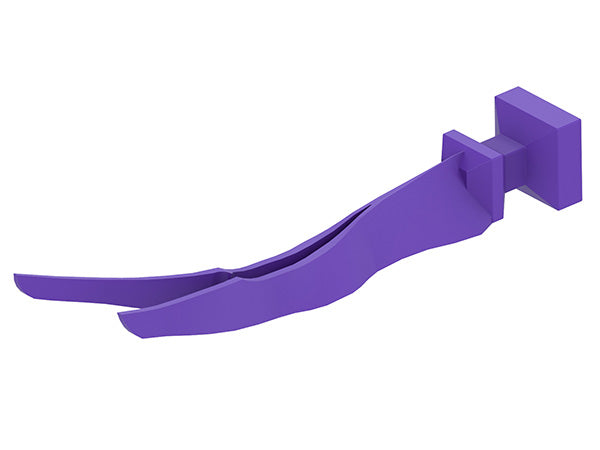

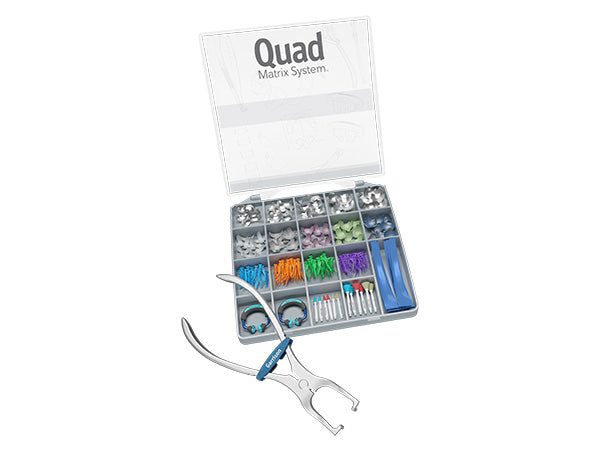

The Quad System offers several advantages that enhance the efficiency and quality of dental restorations. One key benefit is its ability to allow for the simultaneous placement on adjacent teeth, making it particularly well-suited for back-to-back restorations. The system features pre-contoured, firm matrix bands that help recreate natural tooth anatomy with accuracy. A distinctive element of the Quad System is its “split wedge” design, which enables the Quad Wedge to adapt to both sides of the gingival embrasure simultaneously. This design not only seals both gingival margins effectively—reducing the risk of flash and overhangs—but also drives the matrix band deeper to improve adaptation at the gingival margin.

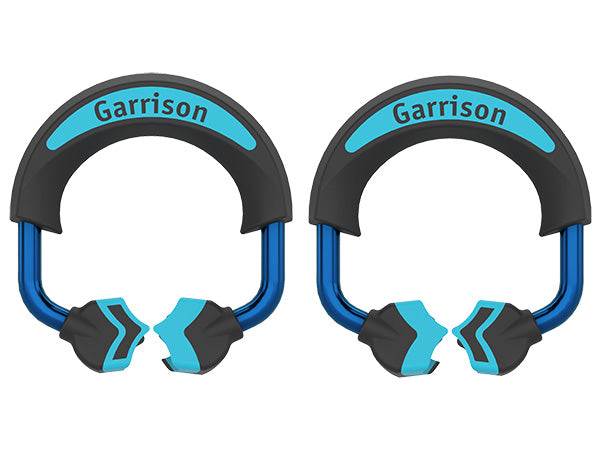

Additionally, the all-new asymmetrical ring design with specialized driver-tip maximizes Quad Wedge adaptation and cervical seal. By having right and left driver tips, the Quad Matrix system allows you to select the ideal ring for each quadrant and for each restorative challenge. This provides a unique advantage over traditional matrix systems. The Quad Matrix Rings are engineered to separate teeth efficiently and endure compression forces. The system also ensures secure positioning of the matrix band, minimizing the risk of collapse or displacement during composite placement.

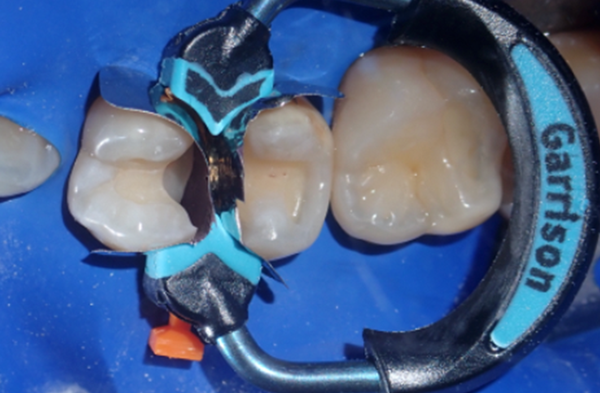

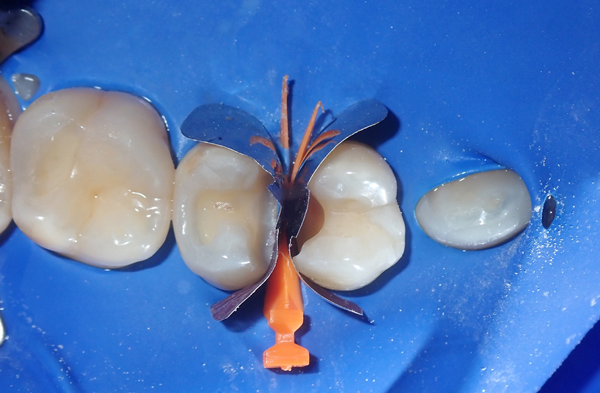

In this case, both teeth were prepped, and the Quad System was placed to ensure stable contact creation during the restoration process. Anatomically shaped wedges and separating rings were inserted to achieve optimal band adaptation and gingival seal (Fig. 5 & 6).

FIG. 5

FIG. 6
Simultaneous placement facilitates the restoration of back-to-back
 Class II lesions with proper contact and contour.

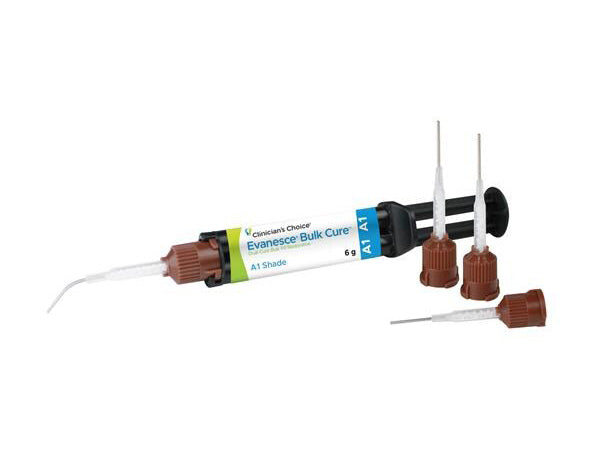

Evanesce Bulk Cure (Clinician's Choice) was selected due to its outstanding combination of physical and clinical properties. Unlike traditional light cure bulk fill composites, that often require incremental placement and curing, Evanesce Bulk Cure is dual cure allowing for several clinical advantages. Evanesce Bulk Cure can be placed in a single increment, regardless of cavity depth. It’s self cure chemistry provides the clinician with confidence that the material is fully polymerized. When Evanesce Bulk cure is placed, polymerization begins immediately and when left to self cure (60 seconds), it reduces the shrinkage stress and gaps caused by excessive shrinkage force at the pulpal floor that is usually associated with light cure materials. At any point after placement, Evanesce Bulk Cure can be tack cured for 1-3 seconds to eliminate flow in larger cases and without increasing shrinkage stress.



Being Bioadaptive, Evanesce Bulk Cure’s low viscosity ensures intimate adaptation to the pulpal floor, cavity walls, and matrix band. This feature will also prevent placement voids while improving marginal adaptation. The bulk placement will reduce clinical time significantly - an important factor for both clinicians and patients.

Evanesce Bulk Cure is compatible with any adhesive system. It offers high radiopacity, which ensures easy post-operative evaluation, and the material also delivers excellent polishability and wear resistance.

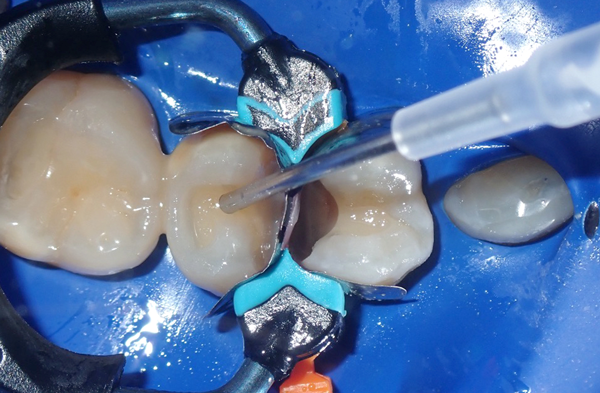

Each proximal box was filled and allowed to self cure for 30-60 seconds followed by light curing from both the buccal and lingual aspects, to ensure complete polymerization (Fig. 7). Evanesce Bulk cure can be placed to the occlusal surface or as an alternative, be placed to the DEJ and overlayed with Evanesce Universal Restorative as a final enamel layer. This technique allows for more detailed anatomy to be placed prior to light polymerization. This can also optimize esthetics but is not necessary because of Evanesce Bulk Cure’s notable polishability and wear resistance. As noted earlier, in larger or upper cases, Evanesce can be tack cured for 1-3 seconds to control flow without inducing shrinkage gaps.

FIG. 7
Composite is placed in bulk, as there are no limits on increment depth, ensuring proper adaptation of the proximal box.

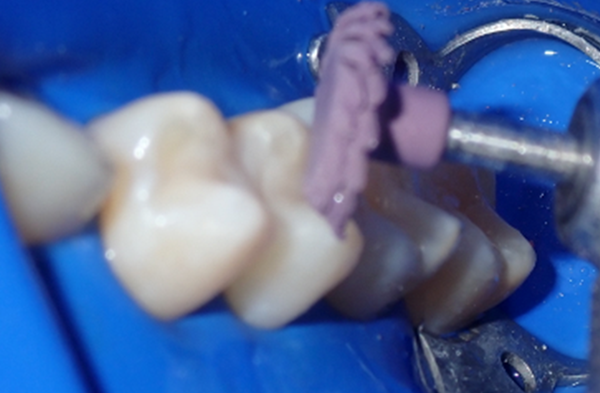

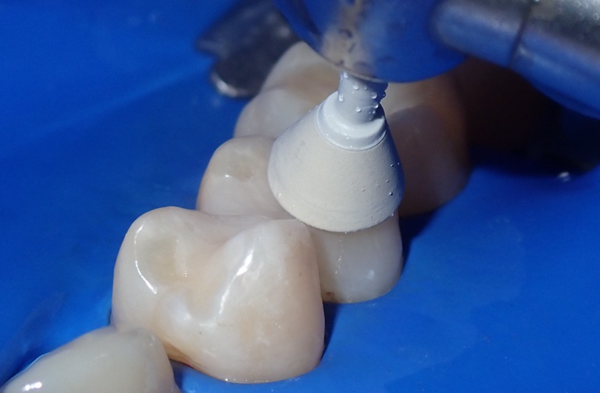

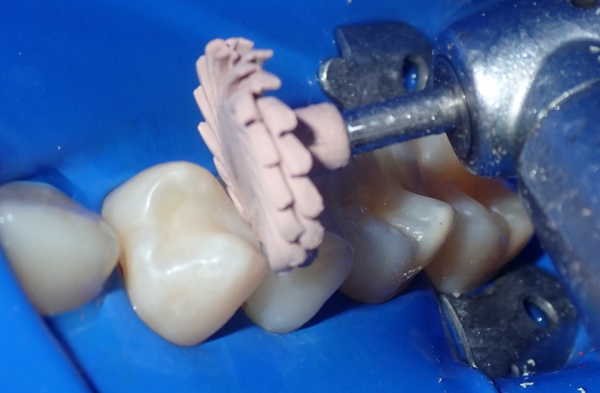

After removing the matrix system, the contacts were carefully verified using floss to ensure proper interproximal alignment. Occlusion was then assessed with articulating paper to confirm accurate bite relationships. Margins were refined using fine-grit diamond burs and carbide finishing burs to enhance precision and smooth transitions. A final polish was achieved through a multi-step polishing system designed to deliver optimal smoothness and luster. This polishing protocol included the use of Rally Polishers (Garrison Dental), A.S.A.P. Polishers (Clinician's Choice), and composite polishing paste for a high-quality, esthetic finish (Fig. 8-11).



The final restorations demonstrated tight, anatomically correct proximal contacts, ensuring proper tooth alignment and function. They also exhibited excellent marginal adaptation and a high-quality polish, contributing to both durability and esthetics. Additionally, the restorations maintained functional occlusion, resulting in high patient satisfaction with both comfort and appearance (Fig. 12).

FIG. 8

FIG. 9

FIG. 10

FIG. 11

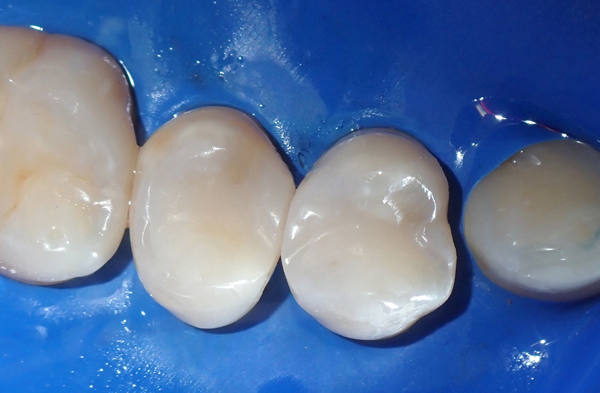

FIG. 12
Restorations exhibit tight proximal contacts, smooth surfaces, and natural anatomy, ensuring
function and esthetics.

Conclusion

Successful posterior composite restorations depend on thoughtful material selection and strict adherence to technique. The integration of rubber dam isolation, Total Etch bonding with Kerr OptiBond FL, and modern matrix systems such as the Garrison Quad System can significantly reduce the challenges associated with back-to-back Class II restorations. Clinician's Choice Evanesce Bulk Cure allows clinicians to efficiently fill deep cavities without compromising esthetics or durability.

Clinical Pearl: For predictable Class II restorations, focus on isolation, adhesive protocol, and matrix system selection just asmuch as on the composite itself.

REFERENCES

1 Inglês M, Vasconcelos E Cruz J, Mano Azul A, Polido M, Delgado AHS. Comparative Assessment of Different Pre-Treatment Bonding Strategies to Improve the Adhesion of Self-Adhesive Composites to Dentin. Polymers (Basel). 2022 Sep 21;14(19):3945. doi:10.3390/polym14193945. PMID: 36235894; PMCID: PMC9570807.
