From Mild to Wild: Treating Simple and Extreme Black Triangle Cases with Bioclear

Treatment of black triangles has recently reached a significant threshold of consciousness for both patients and clinicians. Additionally, most orthodontists have begun to acknowledge that post-operative black triangles that appear after adult orthodontics is a real concern.

Prevalence and Patient Attitudes

One third of adults suffer from black triangles, or more appropriately referred to as open gingival embrasures. Besides being unsightly and prematurely aging the smile, black triangles are prone to accumulate food debris and excessive plaque. Black triangle occurrence after adult orthodontics is very common, and upsetting enough to the patients that some orthodontists are gun-shy to treat adult crowding cases or adults in general. Age of the patient, duration of active treatment, crown morphology and degree of crowding are involved in black triangle manifestation and can readily be predicted before orthodontics is initiated. In a landmark study, Dr. Joanne Cunliffe analyzed patient concerns and showed that patients are more concerned about black triangles than they are about dark teeth or crowded teeth, which is surprising to many esthetic-minded clinicians that prescribe whitening and adult orthodontics. A quick internet search of dental black triangles will lead the reader to a seemingly never ending trail of patient questions, patient complaints, and now even lawsuits resultant from adult orthodontic cases and post-periodontal therapy papilla loss. Instead of sweeping these problems under the rug, this clinical and esthetic dilemma is a unique opportunity for us as cosmetic dentists to improve the functionality, confidence, health, and esthetics of these patients’ oral condition.


In this article we will present two case reports. First, a life-changing, fairly extreme black triangle treatment is shared. This case was treated with the original Anterior Bioclear matrix system. Second, a single, simple black triangle treatment is presented. In the second case the newer BT system was utilized. Both of these treatments utilize a recipe-based method which includes injection over-molding of the teeth utilizing special patented matrices, gauges, heated composite, and to remove both biofilm and the protein pellicle and simplified polishing to achieve a super-glossy finish.

Case #1: Extreme Black Triangle Treatment

Patients are often at a crossroads when it comes to their desire for a better smile. When options are financially beyond their ability, the dentist must seek a result that can provide a satisfactory solution while maintaining or even improving existing health conditions.


This 38-year-old female presented with severe bone and tissue loss with resultant extreme black triangles between several teeth. Most important to her was her upper smile. She was referred by her periodontist, who confirmed that the patient had excellent compliance over a course of prescribed treatment that included full mouth scaling and root planing, LANAP, and had maintained consistent periodontal maintenance appointments at 3-month intervals. Inflammation was under control, and despite the severe loss of the periodontium, she had relatively low mobility with nothing beyond a 1 or 1+ designation. Her motivation was high, and she was eager to proceed with having her black triangles closed. The extreme amount of unfamiliar negative space (black triangles) presents a challenge both to the patient who must endure the emotional impact this creates and to the dentist who must treat the case.

Woman smiling showcasing severe black triangle in upper incisors

FIG. 1

Pre-operative full-face image demonstrates her discomfort showing her smile and esthetically crippling black triangles

Close-up smile showcasing severe black triangles in upper incisors

FIG. 2

Pre-operative smile presents a complex spatial challenge. Will adding such significant volume create pleasing tooth proportions?

Close-up lateral smile showcasing severe black triangles in upper incisors

FIG. 3

Close-up lateral smile showcasing severe black triangles in upper incisors

FIG. 4

Lateral views show that the black triangles between the canines and laterals were much smaller, so the decision was made to close that space partially and unilaterally by not adding to the canines.

Options

Patients presenting with a severe degree of bone and tissue loss have been treated with invasive procedures, including extractions, block grafts, and implants. Often, a prosthesis utilizing pink porcelain is needed to hide the remaining negative space. If implants are not affordable or not deemed predictable, then extractions and removable prosthetics can be considered. Alternatively, full crowns are often recommended. Each of these options carries its own risk to reward, and the cost of treatment extends over a wide range and, in many cases, is out of reach financially for many of our patients.


This is an excellent case, in principle, for the Bioclear matrix system and method. In principle, because with such large negative spaces to be closed, there are concerns about how that will affect tooth size and shape, and final proportions. These issues must be relayed to the patient to avoid an embarrassment to the doctor and a disappointed patient.


Two questions arise: Can the spaces be closed, and should all the spaces be closed? The former could result in unacceptable tooth proportions, and the latter may miss the mark from the patient’s perspective and desired outcome. However, in the clinician’s experience, most patients more often take the option resulting in the least invasive procedure and find the results more than satisfactory. The perception of a beautiful smile is what matters most, even when there are some compromises that must be made.

After consulting with the patient, she chose to proceed with Bioclear black triangle restorations and to have as much space closed as possible since her condition was a major obstacle and had a negative impact on her public interactions. Her goal was a confident and pleasing smile, untethered to the often-used norms in dentistry used to evaluate “ideal” smiles.

Treatment

Matrix placed in central upper incisors

FIG. 5

Matrix try-in before the rubber dam is key when using these dedicated space closure matrices to determine soft tissue displacement.

Matrix placed in lateral upper incisors

FIG. 6

Matrix try-in affords a “diagnostic wax-up" to predict final tooth shapes.

The Bioclear™ DC-201 matrix was chosen as ideal to close the spaces between the central incisors and for the distal surfaces of the centrals as well. The smaller DC-203 matrix was used for the mesial and distal surfaces of the lateral incisors. All matrices were then set aside into designated and marked containers. (This case was done using classic Bioclear matrices. At the time of the procedure, the Black Triangle Matrix Kit was not yet developed.)


The rubber dam was then placed over the anterior segment, and after properly tucking the dam into the sulci, the teeth were dried, disclosed with Bioclear™ Disclosing Solution, and rinsed after 30 seconds. Teeth 7-10 were then cleared of all biofilm and protein pellicle with the use of the Bioclear Blaster™ using aluminum tri-hydroxide powder under a high-pressure water spray.


Prior to placing the matrices, interproximal contacts were entered with the TruContact serrated handheld strip and then lightly sanded with TruContact diamond sanders. This allows further removal of biofilm in these tight areas and allows complete seating of the matrices as contact tightness is reduced. The final amount of black triangle closure can be visualized by placing the matrices before rubber dam is applied. The dentist is able to assess whether the matrices are correct to close the space. If not, the matrix can be either customized or replaced with another that might improve the outcome.


Tooth #8 was chosen to be injection-molded first. The designated matrices for the mesial and distal were placed and seated into the sulcus. This forms a full 360º envelope or “aquarium” around the tooth. The matrices chosen for the mesial of #9 and the mesial of #7 were placed on their respective surfaces to act as “shield” matrices. These “shields” guard against over encroachment of composite into the interproximal space during the injection-molding process, eliminating accidental curing of composite beyond the desired shape as given by the matrix.


Then, 37% phosphoric acid was used to etch the entire tooth #8, rinsed after 15 seconds, and excess water was removed. 3M® Scotchbond Universal Adhesive was scrubbed into exposed dentin areas for 20 seconds, and air thinned. Then the entire tooth was copiously wetted with more adhesive to act as a surfactant for the composite as it is injection-molded. No pre-curing was done to the adhesive.


Warmed 3M® Filtek Supreme Flowable Restorative was slowly injected into the matrices around tooth #8 by placing the tip of the syringe into one interproximal area on the facial side, allowing the composite to flow slowly to the lingual half of the tooth. The same process was repeated to the other interproximal area. The lingual half of the tooth was then filled to completion. Great care is taken to ensure that void-free flowable composite has filled much of the matrix system prior to adding the paste composite.


Heated 3M® Filtek Supreme Ultra Universal paste composite was then injection-molded into the matrix system. The heated paste composite displaces excess adhesive as well as much of the flowable composite leaving a dense monolithic mass composed chiefly of the paste composite. After cleaning up excess with the Bioclear Paddle Instrument and dry brushes along the gingival areas, the composite was light-cured on both facial and lingual surfaces for a minimum of 20 seconds per side.


Using a Komet® coarse diamond flame-shaped bur and 3M® Soflex Coarse discs, the cured composite was shaped to roughly 80% of the final desired tooth contours. Once this is achieved, the same process was done to tooth #9 and subsequently to the lateral incisors.


Final shaping was completed with the 3M® Soflex Coarse disc, followed by a final polish using Bioclear Magic Mix pre-polishing paste and the Bioclear Rockstar Polishing cup. (Figure 7) Rubber dam was removed, and the smile was evaluated for facial harmony. Adjustments were not needed for this patient as she was pleased with all aspects of her smile. (Figures 8- 9) Post operative radiographs were taken to assess for excess composite and quality of technique and can be compared to the pre-operative x-rays. Post operative radiographs are useful for quality control. Notice how a smooth “infinity edge” can be created with the Bioclear matrices and technique. This is essential for a healthy tissue response.

Upper teeth isolated with rubber dam after restorative procedure

FIG. 7

After the entire tooth is ensconced with the injection over-molding, it is rapidly sculpted and polished creating a margin-free and stain resistant surface.

Close-up in smile after restorative procedure

FIG. 8

Esthetic reveal after rubber dam is removed. Elimination of unfamiliar negative space is nearly always a dramatic improvement.

Woman smiling showcasing new smile post-procedure

FIG. 9

Post-operative full-face view highlights this life-changing treatment.

X-ray of pre operative black triangle

FIG. 10

X-ray of post operative black triangle

FIG. 11

Pre and Post-operative radiographs demonstrate an aggressive yet healthy and precise change in contour that both orthodontists and periodontists are grateful to see.

Final Result: While there was great concern over the effect of the added volume of composite and how it may negatively affect the tooth contours and thus the overall smile, it is shown that the results were highly acceptable. The patient was more than happy and was pleased that she opted for Bioclear to solve her dilemma. With wide variations of perceived beauty in a smile, this is not surprising.


One of the greatest benefits of using Bioclear in closing black triangles is the added stability that periodontally weak teeth can obtain. In this case, stability was improved further at the two-year mark. (Fig 12). The 4-year results (Fig 13) are proving to be color stable and free of inflammation (not shown). As often seen following cosmetic dentistry, the improvements are dramatic and result in a more relaxed and confident smile.

Close-up in smile after final treatment

FIG. 12

Woman smiling showcasing new smile 4 years after treatment

FIG. 13

Four year follow-up demonstrates both stain resistance of restorations and stability of the restoratively-driven papilla regeneration.

Case #2: A Single Black Triangle Treatment

This 34-year-old male contacted the Bioclear Clinic in Tacoma, WA USA after doing an internet search on treatment of black triangles. Like many adult patients who complete orthodontics, he had black triangles that appeared during adult orthodontic treatment. (Figs 14, 15) The patient received a complete examination including necessary radiographs and photographs. Although the patient had five black triangles present, he elected to just have the larger midline area single black triangle treated. The patient received a full explanation regarding the limitations of treating just the single area in lieu of a more comprehensive treatment. Proper photographs from a lateral view are critical in these cases because a frontal view which is what the patient sees, is different from lateral views which is what everyone else sees. (Figs 16, 17) In the author’s significant experience treating these types of cases, it is rare to treat a single black triangle. This case will therefore provide a rare and enlightening contrast of treated versus untreated areas when we view the two-year follow-up.

Close-up on smile showcasing small black triangle in lower central incisor

FIG. 14

Pre-operative view with pursed lips.

Close-up on smile showcasing small black triangle in lower central incisor

FIG. 15

Retracted view of the mandibular incisors and black triangle #24-#25

Close-up on smile showcasing small black triangle in lower central incisor and lower lateral incisor

FIG. 16

Lateral view showing the smaller black triangle #23-#24 not visible in the straight on view

Close-up on smile showcasing small black triangle in lower central incisor and lower lateral incisor

FIG. 17

Lateral view showing the smaller black triangle #25-#26 not visible in the straight on view

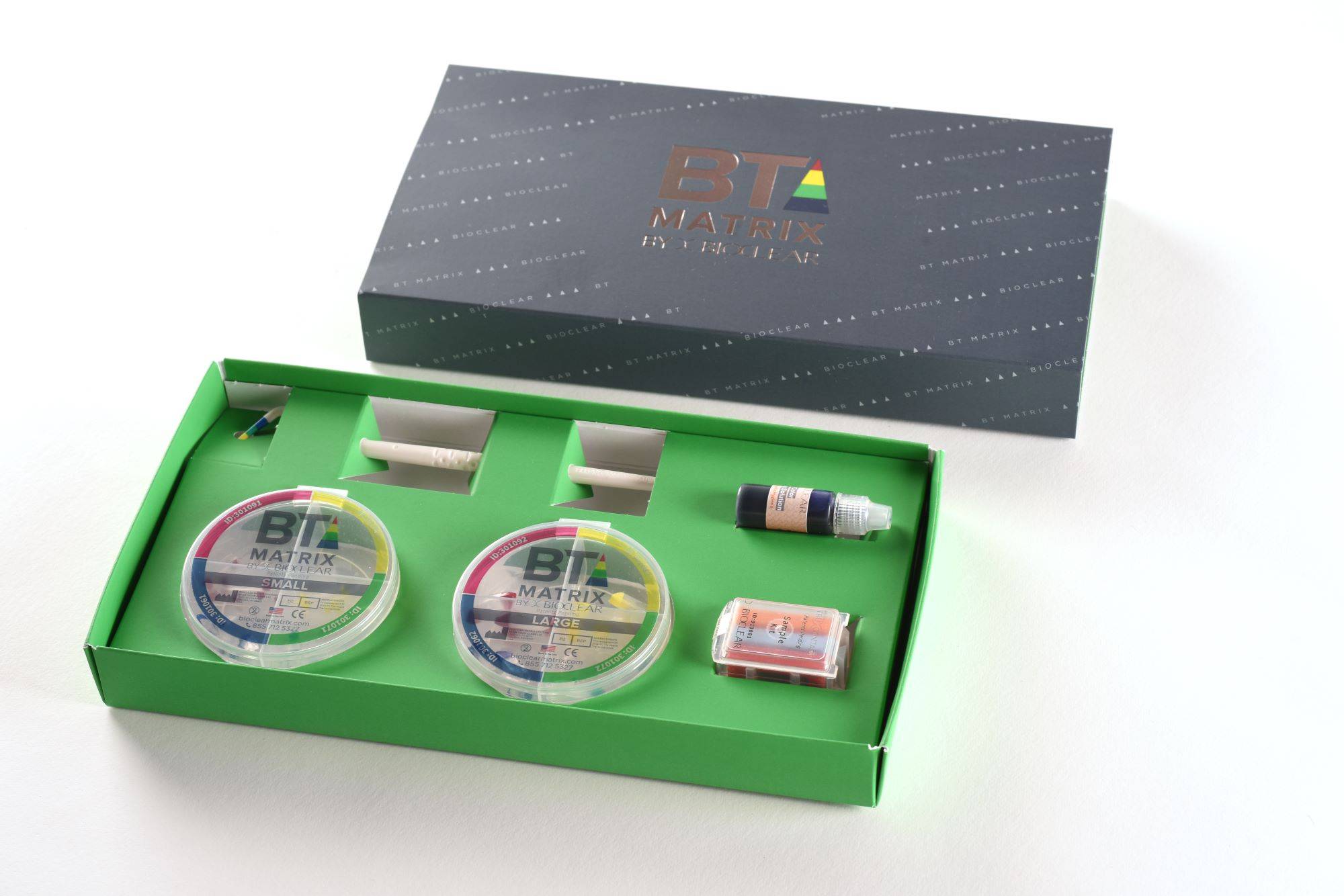

The Bioclear (Tacoma WA USA) BT kit used in case one is shown in Figure 18 with the four important components: small and large black triangle matrices in four different and color-coded emergence profiles. Dual Color Disclosing Solution, the Black Triangle Sizing Gauge, and the TruContact sanders. Additional materials and instruments are explained in the body of the article. First, the Black Triangle Gauge is inserted buccal-lingually below the contact to assess the mesio-distal size of the black triangle. (Fig 19) The gauge will bind at one of the four colors. In this case the gauge binds in the pink zone. Then a pair of correspondingly color-coded black triangle matrices are tried in for each embrasure. Before the rubber dam is placed, the TruContact sanders are used to groom the contact area to remove calculus and to lighten the tension of the contact areas to allow the matrices to seat fully. (Fig 20) Once the rubber dam is placed, the teeth are disclosed (Fig 21) and then blasted with an air/water/abrasive slurry of aluminum tri-hydroxide (Fig 22) (Bioclear Blaster). The 37% phosphoric acid used to condition the teeth does not remove the soft, sticky biofilm that covers the tooth. It is therefore imperative that the teeth be aggressively cleansed before acid-etching. Additionally we now understand that the protein pellicle that coats the tooth must be removed to achieve an ideal bond. The interproximal area is extremely difficult to access with scalers and prophy cups and is of course the exact area that we are attempting to bond to when treating black triangles.

Bioclear Black Triangle matrix kit in a green box

FIG. 18

The Bioclear BT kit is shown with both large and small matrices each with four colors of matrices, gauge, sanders, and disclosing solution.

Gauge with colour coded tip inserted in between teeth

FIG. 19

Black Triangle sizing gauge inserted from facial. Instructions in the kit recommend inserting gently below the contact from buccal to lingual, and also lingual to buccal (not shown).

Rubber dam isolated teeth showing purple stains after placement of discloosing solution

FIG. 20

Disclosing solution (also in the Bioclear kit) is placed on the dry teeth to aid in identification and removal of biofilm and the protein pellicle.

Blaster spraying rubber dam isolated teeth

FIG. 21

Bioclear blaster is utilized and sprayed from both buccal and lingual directions.

3 images showcasing sanding of teeth

FIG. 22

The contacts are lightly sanded to allow full insertion of the matrices.

In general, the Black Triangle Gauge will match the profile of the corresponding matrices, but in this case the more aggressive emergence profile matrix, or yellow BT matrices are chosen because of the unique shape of the teeth even though the gauge suggested the pink color. (Fig 23)

Yellow matrices placed in rubber dam isolated teeth

FIG. 23

The “yellow” small BT matrices were selected in lieu of the less curvaceous pink matrices. In the author’s experience, the gauge is an important starting point for matrix selection, but clinical try in of the matrices is the ultimate indicator.

The first tooth is injection molded with a 3-step process. First an adhesive such as 3M® Scotchbond Universal Plus is placed on the previously etched enamel, it is air-thinned, but not light cured. Next, warmed flowable composite is carefully injected using the uncured adhesive as a wetting agent, or surfactant, to minimize air entrapment and maximize flow into the acute matrix-tooth interface. The flowable composite is injected from both the facial and lingual directions. The flowable is not light-cured yet. Finally, warmed paste composite, in this case 3M® Filtek Supreme Ultra shade B-1B is injected from the facial direction. The paste easily displaces the flowable composite to the lingual and incisal vent areas. The goal is that the final percentage of paste composite versus the flowable composite is 90% /10%.


After curing, the matrix is removed from tooth #25, (Fig 24) and then #24 is injection molded. This to ensure a snug contact. The teeth are then rapidly sculpted together for sake of symmetry and efficiency. The final step is the Rockstar Polish. Invisible infinity edge margins are placed at mid-tooth. (Figs. 25, 26) At one-year recall, the treated area is essentially bacteria and calculus-free, and the neighboring untreated embrasure is filled with calculus


The obvious health and quality of life of the treatment are a bonus to the esthetic benefits. (Fig 27) Pre- and post-operative radiographs demonstrate the imperceptible interface of composite to tooth and the void -free quality of the composite which is the goal if injection over-molded heated monolithic composite. (Figs 28, 29)

Rubber dam isolated teeth with one molded injected side

FIG. 24

After the first tooth is injection molded, the matrix from #25was removed. Note the Mylar finish. Half of the embrasure is rejuvenated.

Rubber dam isolated teeth after restoration

FIG. 25

The second tooth is then injection molded.

Close up on post operative teeth, no black triangles in sight

FIG. 25

Immediate post operative view of the finished treatment incorporating the Rock Star Polish method (Bioclear).

Close-up on restored teeth after 2 years, no black triangle in sight

FIG. 27

Two-year postoperative view. Note the Infinity Edge finish line, lack of calculus build-up, and excellent soft tissue response #24-#25 and at the same time calculus in the untreated embrasure #25-#26

Pre restoration x ray

FIG. 28

Pre- and post-operative bitewing demonstrate

the marginal integrity and the lack of voids.

Port operative xray

FIG. 29

Pre- and post-operative bitewing demonstrate

the marginal integrity and the lack of voids.

Summary: Traditional hand-spackled composite placement for treatment of Black Triangles has historically been viewed with skepticism by many restorative dentists, orthodontists, and periodontists. Until now, our confidence as clinicians to treat “Black Triangle Disease” is so guarded that that most patients are told that there is no healthy option. Patients are often told that either nothing should be done or are offered aggressive and physiologically costly procedures such as crowns, veneers, physiologically inappropriate interproximal reduction (IPR) during or at the end of orthodontic treatment. Surgeries and dermal fillers are rarely a predictable, long-term solution. The problem should not be underestimated as one third of adults suffer the esthetic and functional dilemmas associated with “Black Triangle Disease".

REFERENCES

1) Kurth J, Kokich V. Open gingival embrasures after orthodontic treatment in adults: prevalence and etiology. Am J Orthod Dentofacial Orthop 2001; 120:116-123


2) Ko-Komura N, Kimura-Hayasi M et al. Some factors associated with open embrasures following orthodontic treatment. Aust Orthod J 2003; 19:19-24


3) Joshi K, Baiju CS, Khashu H, Bansal S, Maheswari IB. Clinical assessment of interdental papilla competency parameters in the esthetic zone. J Esthet Restor Dent. 2017 Jul 8;29(4):270-275. doi: 10.1111/ jerd.12307. Epub 2017 May 25. PMID: 28544578.


4) An SS, Choi YJ, Kim JY, Chung CJ, Kim KH. Risk factors associated with open gingival embrasures after orthodontic treatment. Angle Orthod. 2018 May;88(3):267-274. doi: 10.2319/061917-399.12. Epub 2018 Jan 16. PMID: 29337634; PMCID: PMC8288320.


5) Meeran NA. Iatrogenic possibilities of orthodontic treatment and modalities of prevention. J Orthod Sci. 2013 Jul;2(3):73-86. doi: 10.4103/2278-0203.119678. PMID: 24987646; PMCID: PMC4072383.


6) Tanaka OM, Furquim BD, Pascotto RC, Ribeiro GL, BĂłsio JA, Maruo H. The dilemma of the open gingival embrasure between maxillary central incisors. J Contemp Dent Pract. 2008 Sep 1;9(6):92-8. PMID: 18784864.


7) Burke S, Burch JG, Tetz JA. Incidence and size of pretreatment overlap and posttreatment gingival embrasure space between maxillary central incisors. Am J Orthod Dentofacial Orthop. 1994 May;105(5):506-11. doi: 10.1016/S0889-5406(94)70013-3. PMID: 8166102.


8) Kandasamy S, Goonewardene M, Tennant M. Changes in interdental papillae heights following alignment of anterior teeth. Aust Orthod J. 2007 May;23(1):16-23. PMID: 17679530.


9) Kolte AP, Kolte RA, Bawankar P. Proximal contact areas of maxillary anterior teeth and their influence on interdental papilla. Saudi Dent J. 2018 Oct;30(4):324-329. doi: 10.1016/j.sdentj.2018.05.007. Epub 2018 May 28. PMID: 30202169; PMCID: PMC6128317.


10)Sharma AA, Park JH. Esthetic considerations in interdental papilla: remediation and regeneration. J Esthet Restor Dent. 2010 Feb;22(1):18- 28. doi: 10.1111/j.1708- 8240.2009.00307.x. PMID: 20136942.


11) Saxena D, Kapoor A, Malhotra R, Grover V. Embrasure morphology and central papilla recession. J Indian Soc Periodontol. 2014 Mar;18(2):194-9. doi: 10.4103/0972-124X.131323. PMID: 24872628; PMCID: PMC4033886.


12) Montevecchi M, Checchi V, Piana L, Checchi L. Variables Affecting the Gingival Embrasure Space in Aesthetically Important Regions: Differences between Central and Lateral Papillae. Open Dent J. 2011;5:126-35. doi: 10.2174/1874210601105010126. Epub 2011 Jul 29. PMID: 21892365; PMCID: PMC3162192.


13) Rashid ZJ, Gul SS, Shaikh MS, Abdulkareem AA, Zafar MS. Incidence of Gingival Black Triangles following Treatment with Fixed Orthodontic Appliance: A Systematic Review. Healthcare (Basel). 2022 Jul 24;10(8):1373. doi: 10.3390/healthcare10081373. PMID: 35893195; PMCID: PMC9331869.


14) Roccuzzo M, Roccuzzo A, Ramanuskaite A. Papilla height in relation to the distance between bone crest and interproximal contact point at single-tooth implants: A systematic review. Clin Oral Implants Res. 2018 Mar;29 Suppl 15:50-61. doi: 10.1111/clr.13116. PMID: 29498124.


15) Cunliffe J, Pretty I. Patients ranking of interdental “black triangles” against other common esthetic problems. Europ J Pros Rest Dent. 12?2009; 17(4):177-181


16) Pieri F, Aldini NN, Marchetti C, Corinaldesi G. Esthetic outcome and tissue stability of maxillary anterior single-tooth implants following reconstruction with mandibular block grafts: a 5-year prospective study. Int J Oral Maxillofac Implants. 2013 Jan-Feb;28(1):270-80. doi: 10.11607/jomi.2560. PMID: 23377074.


17) Interdental Papillae: A Case Report. Compend Contin Educ Dent. 2017 Jul;38(7):474-480. PMID: 28727466.


18) Al Taki A, Hamdan AM, Mustafa Z, Hassan M, Abu-Alhuda S. Smile esthetics: Impact of variations in the vertical and horizontal dimensions of the maxillary lateral incisors. Eur J Dent. 2017 Oct- Dec;11(4):514-520. doi: 10.4103/ejd.ejd_351_16. PMID: 29279680; PMCID: PMC5727739.


19) Boglarka O. Kovacs, Shamir B. Mehta, Subir Banerji and Brian J. Millar. Aesthetic Smile Evaluation-A Non-Invasive Solution. Dental Update 2011, 38:452-458


20) Vincent O. Kokich, Vincent G. Kokich, and H. Asuman Kiyak. Perceptions of dental professionals and laypersons to altered dental esthetic: Asymmetric and symmetric situations. American Journal of Orthodontics and Dentofacial Orthopedics. Volume 130, Number 2 :141-151


21) Siahpush M, Spittal M, Singh GK. Happiness and life satisfaction prospectively predict self-rated health, physical health, and the presence of limiting, long-term health conditions. Am J Health Promot 2008;23:18-26


22) Chan MYS, Mehta SB, Banerji S. An evaluation of the influence of teeth and the labial soft tissues on the perceived aesthetics of a smile. Br Dent J. 2017 Aug 25;223(4):272-278. doi: 10.1038/sj.bdj.2017.713. PMID: 28840875.

About the Authors

Dr Clark and Dr Regalado

David Clark, DDS

Co-Director of Bioclear Learning Centres International and Private Practice in Tacoma, WA.

Charles Regalado, DDS

Full Faculty at the Bioclear Learning Centre and Private Practice in Spokane, WA.
