Kuraray® Panavia™ SA Universal Cement

CRD Item Number: 605983

Manufacturer SKU: 4212KA

Vendor Kuraray
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
Add To Wishlist

Cement everything without the need for a primer.

PANAVIA™ SA Cement Universal is a forerunner in self-adhesive resin cements containing the unique LCSi monomer that adheres to virtually every material including glass ceramics without the need for a separate primer. Using a unique silane coupling agent built into the paste - LCSi monomer - the cement delivers a strong, durable chemical bond to porcelain, lithium disilicate and composite resin. The original MDP monomer present in the paste allows for chemical reactiveness with zirconia, dentin and enamel.

Building on the success of our PANAVIA SA Cement Plus, PANAVIA SA Cement Universal also offers the same wide range of indications for adhesion and is suitable for crowns/bridges, inlays/onlays, posts, and even adhesion bridges. Thanks to its powerful single-step bonding formula, cementation is easier than ever before. Other features and benefits include:

  • Suitable for prosthetic restorations
  • Even LiDiSi cementation
  • Easy, gum-friendly excess removal
  • No need for separate primers
  • Storage at room temperature
  • Wide indication coverage including adhesion bridges and lithium disilicate
  • Easy application with little pressure

Indications for Use
  • Cementation of crowns, bridges, inlays and onlays
  • Cementation of prosthetic restorations on implant abutments and frames
  • Cementation of adhesion bridges and splints
  • Cementation of posts and cores
  • Amalgam bonding

Panavia SA Universal Awards

Easy Excess Removal, Easy Application, Easy Storage

Apply Panavia SA

Apply Cement

Remove cement

Remove Cement

Ready cement

Final Restoration

Easy application

Easy Application

Panavia room temperature storage

Room Temperature Storage

Cement Everything in a Single-Step

Shear bond strength to restorative materials.

Shear bond strength materials *Data Source: Kuraray Noritake Dental Inc.

Adheres to Glass Ceramics, Without the Need for a Seperate Primer

lcsi

The unique LCSi monomer creates a strong chemical bond to Porcelain, Lithium Disilicate and Composite Resin.

Original MDP

The Original MDP monomer creates a strong chemical bond to Enamel, Dentin, Metal Alloy and Zirconia.

Easy, Gum Friendly Excess Removal

Two options of polymerization, the same easy clean-up result.

Tack cure light cure

The Fast and Easy Way to Achieve Durable Prosthetic Restorations Cementation

Cements Inlays, Onlays, Posts and Even Adhesion Bridges

When you require fast, easy, durable cementation, even to glass ceramics, PANAVIA SA Cement Universal is the answer. Suitable for almost all indirect work, including adhesive bridges, even post placement in root canals, it gives you more control than ever before. Thanks to easier application, it does away with the need for a dispenser. In addition, our Universal (A2) shade delivers outstanding aesthetics. There’s also a translucent shade and a little more opaque white shade for your specific needs. The result is that your cementations are now more versatile and easier than ever.

A Quick and Durable Cure

A unique blend of curing technologies ensures your cement cures quickly with a durable seal. As our hydrophilic initiators make contact with the moist dentin, the self-curing reaction is accelerated (Fig. 1). And when you start to cure your cement , with light-curing the reaction is accelerated by the radical amplifiers (Fig. 2).

Effortless curing

PANAVIA SA Universal Excess Cement Removal.

"For a long time, I have been sceptical about the use of self-adhesive cements. Nevertheless, I decided to test PANAVIA SA Cement Universal. I like the fact that the primer is integrated in the paste, eliminating the need for a separate component. Moreover, the product offers a convenient handling and easy excess removal. I have a good feeling about using the product in combination with CLEARFIL Universal Bond Quick: Ease of use combined with proven protocols!"

Dr. med. dent. Alessandro Devigus

"Due to superior aesthetics, stability and retention, it is nowadays recommended to use adhesive resin cements rather than conventional cements for restoration placement. In this context, PANAVIA SA Cement Universal offers the perfect combination of quality and an exceptionally easy handling. The interaction between the original MDP monomer and the LCSi silane monomer developed by Kuraray Noritake enables a quick and easy placement in a single step. Independent of the restorative material, even in the case of silicate and hybrid ceramics, a separate primer is no longer needed. Thanks to PANAVIA technology, this resin cement offers the highest possible quality and reliability."

Dr. med. dent. Adham Elsayed

Panavia SA Universal Cement Refill is available in an 8 g automix syringe (each refill includes 20 Mixing Tips) in the following shades:

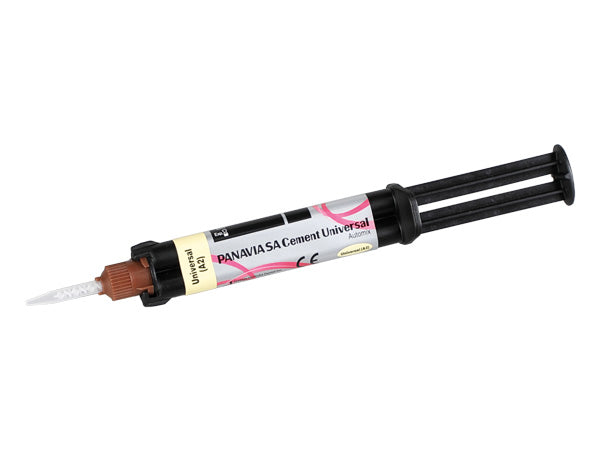

  • Universal A2 (Item Number: 605983)

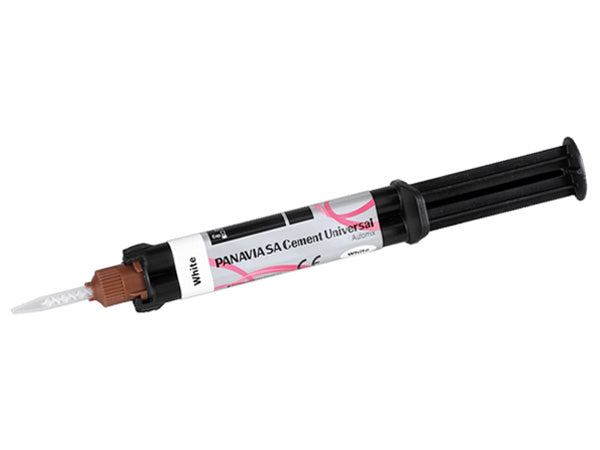

  • White (605984)

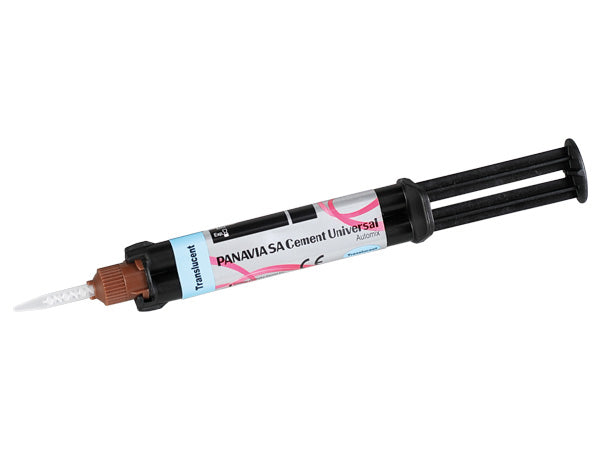

  • Translucent (605985)

Panavia SA Universal Cement Value Packs are available with 3 x 8 g automix syringes (each value pack includes 60 Mixing Tips) in the following shades:

  • Universal A2 (605987)
  • Translucent (605988)

Q: What are the main features?

A: It contains two types of adhesive monomers ("MDP" and "LCSi") allowing adhesion to various types of prosthetic restorations without primer treatment. It also allows fast and easy clean-up of the excess cement.

Q: How can PANAVIA SA Cement Universal achieve high bond strength without primer treatment?

A: "MDP" provides high bond strength by chemical adhesion with its phosphate group to the surface of tooth structure, metal, metal oxide (zirconia, etc.). Furthermore, by incorporating proprietary long-chain silane coupling agent "LCSi monomer", it has the property of bonding to Silica-based ceramics(IPS e.max, porcelain etc.) without requiring primer treatment.

Q: What are the differences among the shades?

A: Universal: The shade is equivalent to A2, and it is recommended for a wide range of restorations.

White: High visibility, opaque for excellent discrimination from the tooth structure (for posts, etc.).

Translucent: High transparency, is recommended for aesthetic restorations.

Q: Are the shades the same as the previous version, PANAVIA SA Cement Plus?

A: Yes, the shades are the same as in previous versions.

Q: How many times can the product be used?

A: Automix: Approximately 15 cases (based on the number of tips attached to the paste separately)

Q: How long is operation time/setting time?

A:

  • Working time (23℃/73°F): Automix takes 1 minute.
  • Working time (in oral cavity): takes about 40 seconds (When used with CLEARFIL Universal Bond Quick, 30 seconds).
  • Light-cure (removal excess cement): 2 to 5 seconds *When used in combination with CLEARFIL Universal Bond Quick, 1 to 2 seconds
  • Self-cure (removal excess cement): between 2 - 4 minutes *Note: Please refer to the Instructions for Use for more detailed information.
  • Light-cure (final polymerization): 10 seconds
  • Self-cure (final polymerization): 37℃/99°F 5 minutes, 23℃/73°F 12 minutes

Q: Is the long chain silane coupling agent, LCSi monomer, a new technology?

A: It is the first time to incorporate it in a resin cement paste for the purpose of providing adhesive property, but CLEARFIL MAJESTY ES Flow, etc. have been using it as a surface treatment agent of the fillers.

Q: Can PANAVIA V5 tooth primer be used for tooth surface treatment?

A: It cannot be used. Because the chemical polymerization catalyst used is different, sufficient adhesion cannot be guaranteed. We recommend the usage of CLEARFIL Universal Bond Quick to enhance bond strength to tooth structure.

Q: How should the product be stored?

A: Store at a temperature of 2-25°C/ 36-77°F. During storage, please avoid direct sunlight, dental light, extreme heat etc.

Q: What are the causes of quick curing?

A: A1. Curing promoted by ambient light
The paste contains a light-cure catalyst that is highly photo-active, and the polymerization can be accelerated when exposed to strong light such as dental light during cementation. Please take measures to reduce the intensity of light by turning off the dental light at the time of operation. Also during and after paste mixing, any exposure to light such as direct sunlight or dental light promotes curing, so please perform the cementation operation promptly after mixing the paste.

A2. Curing promoted in intraoral environment
The curing of resin cements, such as PANAVIA SA Cement Universal, can be accelerated in intraoral environment where the temperature is higher than room temperature. In addition, curing of resin cements can be accelerated as well when the mixed paste is not in contact with air during the cementation procedure with prosthetic restorations. In particular, when cement is applied directly to the cavity, initial curing will start in about 40 seconds, so please perform cementation operation promptly (when used in combination with CLEARFIL Universal Bond Quick, the initial curing starts in about 30 seconds after cementation). As described in the Instructions for Use, the use of lentulo spiral can accelerate the polymerization of the paste beyond the desirable limits.

A3. Curing promoted by contact with water
The water drops adhering to the mixing pad or spatula may accelerate the curing, so if water drops are present, please wipe them off before use. When the product is stored in the refrigerator, to avoid water condensation, allow the product to come to room temperature for at least 15 minutes before use.

Q: What are the reasons for the prosthetic restoration falling off, when removing excess cement?

A: When removing the excess cement after tack-curing, hold the restoration in place to avoid the possibility of lifting the restoration, since there could be some insufficiently cured resin cement. If dental floss is used to remove the excess cement, it should be used in the direction that does not lift the prosthetic restoration. In the case of cementation of non-translucent prosthetic restorations (e.g. metal crowns and inlays), the final curing time of 5 minutes after placement is necessary.

Q: When preparing the abutment tooth after core build-up, the restoration falls off.

A: Please ensure that the light cure was done sufficiently on the entire surface and margins of the restoration. Additionally, in restorations with cores and posts, please allow at least 10 minutes before preparing the abutment tooth.

Q: What are the leading factors of prosthetic restoration failure?

A: A1. Usage of eugenol-containing materials for pulp protection or temporary sealing, as it may inhibit the curing process of resin cement.

A2. Usage of hydrogen peroxide for cleaning cavities, as it may weaken the bond strength to the tooth structure.

A3.Usage of hemostatic agents containing ferric compounds as these materials may impair adhesion and may cause discoloration due to remaining ferric ions.

A4. Usage of hemostatic agents containing aluminum chloride. When using the above, minimize its quantity, and use caution to prevent contact with the adherent surface. Failure to do so might weaken the bond strength to the tooth structure.

A5. Contaminated cavity. If the cavity is extremely contaminated as in the case where the metal core is dropped, etc., clean it in accordance with the general regulations. In addition, residual amalgam or lining materials should be completely removed during cavity preparation to avoid poor adhesion.

A6. Unequal amount of Paste A & B is used. Make sure to dispense an equal amount of Paste A & B for mixing. If the amount of paste A & B dispensed is not equal, curing may be faster or slower and there is a possibility of poor polymerization. In the case of the automix type, before attaching a mixing tip or an endo tip, extrude small amount of the two pastes, making sure equal amounts are being dispensed through the two outlets of the syringe, and discard the test paste.

Q: Why doesn’t PANAVIA SA Cement Universal cure properly on the table?

A: PANAVIA SA Cement Universal does not cure properly (or cures very slowly) at room temperature and in air, because oxygen interrupts the curing of the resin (anaerobic curing). These are normal properties of resin cements. The picture shows the paste on the mixing pad. It cannot be cured in the red area, especially in air (oxygen). If the paste amounts are very small, the paste cannot be polymerized.

Panavia not curing properly

Q: How to check the product to see if it can be properly cured?

A: First, dispense small amounts of PANAVIA SA Cement Universal paste with a mixing tip and leave for 5 - 10 min. Then check to see if the paste can be dispensed from the mixing tip. (If it is hard to dispense, it works correctly) The oxygen influence of the paste is avoided in the mixing tip. For the handmix version, the inner layer of the paste will polymerize, but the outer layer may remain soft (oxygen inhibition layer).

Q: How long is the final cure?

A: The final curing time is 10 seconds in case of the prosthetic restorations that are translucent. The final curing time is 5 minutes after placement of prosthetic restoration for self-curing. In the case of the cores and dental posts, seat the restoration in place for approximately 10 minutes and make sure the cement has been completely cured before preparing the abutment tooth.

Q: Which cement application is recommended: prosthetic side or abutment side?

A: Although it is possible to apply cement to both prosthetic or abutment sides, curing is accelerated when applied to the abutment tooth (cavity) side. When inserting the paste directly into the cavity or root canal, placement of the prosthetic restoration should be done within 40 seconds (within 30 seconds when using CLEARFIL Universal Bond Quick).

Q: Can the product be used for cementing metal (PFM)?

A: Yes, PANAVIA SA Cement Universal can be bonded to both non-precious metal alloys and precious metal alloys.

Q: Can the product be used for fiber post cementations?

A: Yes, it is possible. Primer treatment to the fiber post is unnecessary, but please clean it according to the Instructions for Use after the post trial.
