How to Choose Dental Burs: An Ultimate Guide

Classification of Dental Burs

Do you feel confused trying to choose between the endless choices of dental burs shapes, sizes, and colours?

You know that all dental burs can be grouped and classified by:

Read below to learn more about different numeration systems, ISO standards, and find helpful charts and tips on how to choose the perfect bur for your practice.

There are two main ways to choose the right dental bur: either by imagining the shape you need and looking for something similar in a catalogue, or by finding and comparing ISO numbers. The ISO system for dental burs is classified by colour and number, which can help simplify the process of choosing the right bur. The classification system indicates the material the bur is made of, the style of the shank, the shape, coarseness, and diameter. Many manufacturers use colours and acronyms to help ease the confusion. Usually, you can find the ISO or a shape designation on the packaging.

ISO numbering system for dental burs

Dental Burs Classification:

1. Material – Diamond (806, 807), Carbide (500), Ceramic (005) and Steel (330).

While cutting tools can be made of a variety of materials, the most popular in dentistry is a stainless-steel shank with a diamond coated working end. These diamond dental burs are fabricated by adhering diamond particles to the steel shank using galvanic bonding. Metal, dissolved in an electrolytic bath, is deposited on the steel shank, and entraps the diamond grits until 2/3rds of the particles are covered.

In clinical practice, the exposed diamond chips abrade the tooth structure until the desired shape of the preparation is achieved. The abraded surface of a tooth or composite material has a rough, ‘sanded’ appearance with lots of microscopic dust we commonly refer to as a smear layer.

A carbide dental bur is manufactured from a chunk of tungsten carbide welded to the end of a stainless-steel shank and is then CNC machined to the desired shape and blade configuration. This 2-part construction, when done right, provides the best combination of strength and durability. The tougher carbide working end is designed for multiple uses and resists wear and tear. The carbide flutes, those spiral blades, cleave off the material as it rotates, leaving a relatively smooth surface much like a woodworking plane rather than sandpaper, and is generally easier to subsequently achieve a high shine polish. Read Komet USA blog post with the detailed description of the carbide manufacturing process.

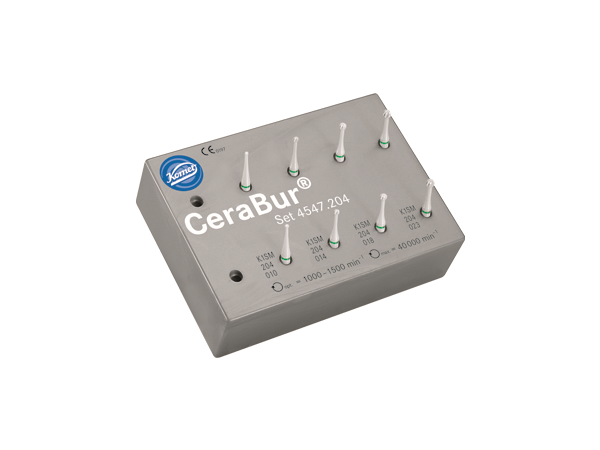

Some burs are made of ultra durable ceramic material for either caries removal or implant sites or denture adjusting. Fabrication of ceramic tools is far more costly, but the durability factor is substantially increased and justifies the increased price.

Steel burs were introduced along with the first rotary dental drill almost 300 years ago and are still used in limited applications today. The softer metal and the rust factor make steel burs impractical for use in modern dentistry save for a few procedures mainly involving amalgam restorations.

2. Shank and overall length

Three main types of handpieces are used in a dental office and all three have different shank requirements:

1. High Speed handpieces use a tiny 1.6 mm diameter shank, and the spinning of bur helps keep it securely retained in the head of the handpiece. The operational bur speed of a dental air-driven or electric motor is 200,000 rpm and the chucking mechanism employs the rotational forces to increase the retentive grip on the bur. FG burs fit in a High Speed air handpiece or a red dot (FG) attachment. These friction grip (FG) shanks come in a variety of lengths from Shorter than Short (STS) to surgical length (SL) depending on the application.

Information about the Shank Type is found on every Komet product page:

example of a product page with FG shank type

2.  Right Angle Latch or Slow Speed handpieces rely on a retentive notch at the base of the shank to secure the bur in the handpiece using a flip latch or push-button mechanism. The max speed of a slow speed air handpiece is generally less than 25,000 rpm.

RA (latch) burs fit in a Slow Speed air attachment or the Blue ring (RA) attachment.

example of a product variant with RA shank

3. There are two versions of a Straight Slow Speed handpiece: the air variety commonly found on the rack of a dental delivery unit and the electric motor used in a ‘lab’ setting. Both are used for adjusting appliances extra-orally in a dental office and both use the longer HP shank burs. Longer HP shank burs are available for oral surgical procedures and orthopedic surgeries. The more common 44.5 mm length burs are prevalent for lab cutters or acrylic adjusting burs.

example of a product page with HP shank type

The Full Range of the Komet Bur Shanks

Click to open the enlarged image in a new window


3. Shape

Although the ISO shape designation is indicated on most bur packaging, clinicians default to the verbal description or application – a “tapered round end” for C&B rather than “shape 198”. The shape and ISO numbering system seems arbitrary and confusing to most end users but is a great way of comparing burs from different manufacturers for acquiring the same bur regardless of the somewhat arbitrary manufacturing number systems.

ISO vs. Shape

Using the chart below, you can identify a shape number or ISO number for the burs being matched. Comparing one brand to another would be much easier if the manufacturers used the standardized ISO system, all 5 of the ISO parameters would match between manufacturers. Unfortunately, many companies use the shape code identifier which very rarely aligns between competing bur rivals. Bur companies can entice repeated business by calling a particular bur by its unique manufacturer shape code or name, as that bur becomes familiar to the purchaser.

These unique numbering codes are marketing tactics, method of retaining as much repeated business as possible since many end users are confused by the lengthy manufacturing order codes. Reordering familiar favourites usually involves the path of least resistance - save the package from the last order, re-order that code. When searching for a new solution like an effective Zirconium cutting diamond or a bur to remove a non-precious metal PFM involves a detailed conversation with a bur ‘specialist’ that can act as a sommelier of sorts to assist with the selection, procurement and organization of the burs needed to perform the variety of procedures patients require.

Bur specialists will have the resources available to decipher these codes and implement a re-order and storage system to ensure the proper assortment of burs. Enlisting the services of technical sales reps that understands burs and their functions can greatly ease the confusion and frustration of acquiring the ‘right’ burs for your practice.

ISO / Bur Shape Chart

ISO Number


barrel bur ISO numbers 037, 038

037, 038

Cylinder (Rounded Shoulder)

cylinder (rounded shoulder) bur, ISO numbers 146, 156, 157, 158

835KR, 836KR, 837KR, 880, 881 (KS)

146, 156, 157, 158

Depth Cutter

depth cutter bur


Double Inverted Cone

double-inverted cone bur

806, 813

019, 032

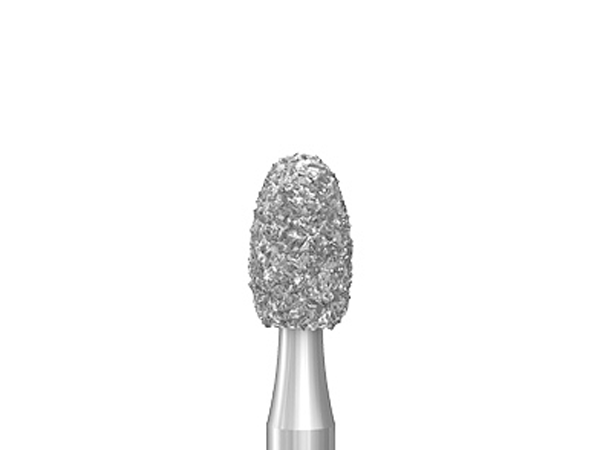

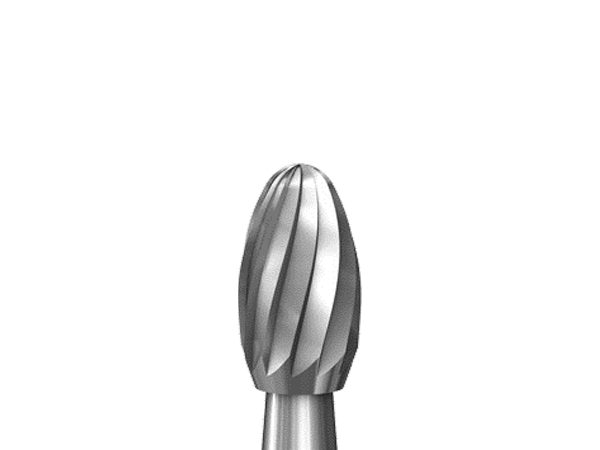

football bur

379, 369, 368

243, 257, 277

End Cutting

end cutting bur

839, 840

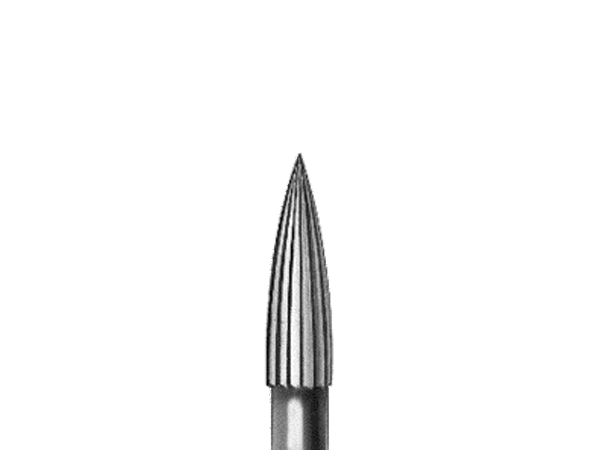

flame bur

390, 860, 861, 862, 863

247, 248, 249, 250, 254, 297, 298

Flat End Cylinder

flat end cylinder bur

835, 836, 837

108, 109, 110, 111, 141

Flat End Taper

flat end taper bur

845, 846, 847, 848

169, 170, 171, 172, 173

Modified Chamfer (Curettage)

modified chamfer bur

877K, 878K, 879K

297, 298

Gross Reduction (wavey)

gross redaction wavey bur

651, 652, 654, 655

511, 512, 513

Interproximal Mosquito/Needle

interpoximal mosquito/needle bur


Inverted Cone

inverted cone bur

805, 807

010, 225

Knife Edge

knife edge bur

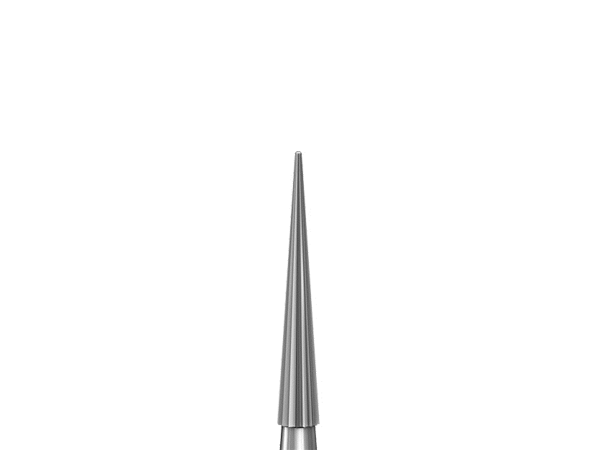

needle bur

852, 858, 859, 859L, 889

160,170, 171, 172, 173, 198, 199


pear bur

237, 238, 239

Pointed Cylinder

pointed cylinder bur

879, 884, 885, 886

129, 130, 131

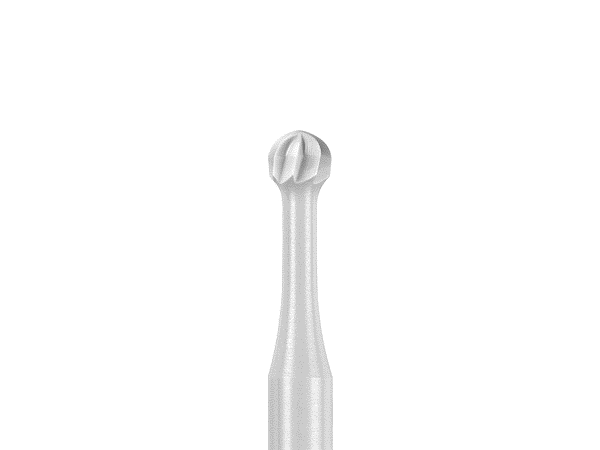

round bur


Round (+ neck)

round + neck bur



Surgical Length Round

surgical length round bur


001 (316)

Round End Cylinder

round end cylinder bur

838, 881

139, 141

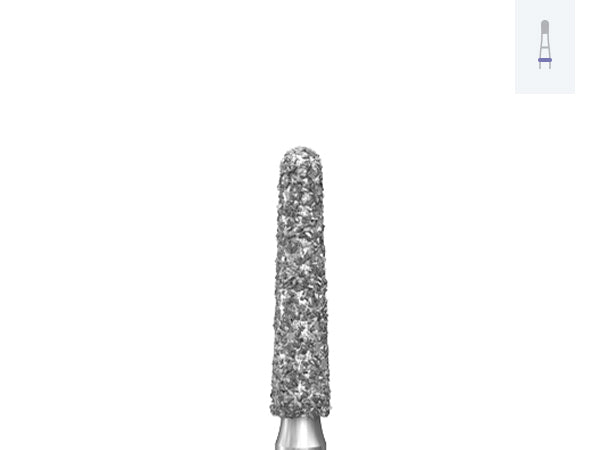

Round End Taper

round end taper bur

849, 850, 850L, 855, 856, 856L

196, 197, 198, 199


wheel bur


041, 042

Rounded Wheel

rounded wheel bur

066, 067, 068

Safe Ended

safe ended bur bur



separation bur


169, 540

Tapered (Rounded Shoulder)

tapered rounded bur

845KR, 846KR, 847KR

544, 545, 546

Bevel Parallel (Modified)

bevel parallel modified bur

877, 878, 879

288, 289, 290


tree bur



Note: Clinical Research Dental has more Komet burs in stock than are represented on the website. Contact us at or Request a demo to find the exact bur you are looking for.

4. Grit Size - Colours

Every diamond bur has a colour ring designating the coarseness and are standardized in the industry by ISO as to the range of diamond particle size. Diamond grits for dental burs are measured in microns (.001mm) as opposed to sandpaper that uses the mesh system – a diamond particle that would pass through a #500 mesh (screen) is 30 microns or less, for example. For those grades where there is a range it is up to the manufacturer to decide exactly the coarseness of their version of the medium, coarse, or super coarse bur – a Komet green stripe, coarse bur is 151µ compared to a BrasselerUSA* black stripe, super coarse that uses 151µ. Read more about Diamond Burs' Colours.

Komet burs grit size and colouring system for diamonds and carbides

5. Head Size

The last digits of the ISO identifier are the simplest: the indicate the diameter of the cutting head of the bur at the widest point. This dimension is listed in tenths of a millimeter so a cutting head that is the same dimension as the shank for instance will be represented by 016 or 1.6 mm.

dental burs head sizes

This explanation of the dental bur numbering systems might make burs easier to acquire and re-order. However, if you are still confused or don’t have time to match all those numbers, we are here to help:

Request personalized Bur Audit. Change your current burs to the Komet® equivalent and get better results and simplify the reordering process.

Komet demo in your practice

Download & print the Komet Bur Conversion card to match your current burs with the Komet ones:

download free bur conversion card
