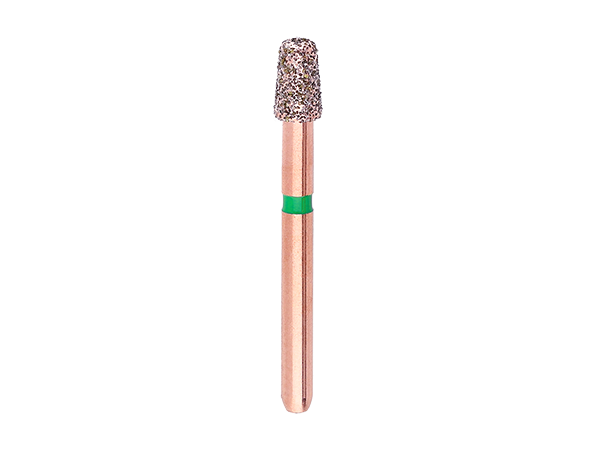

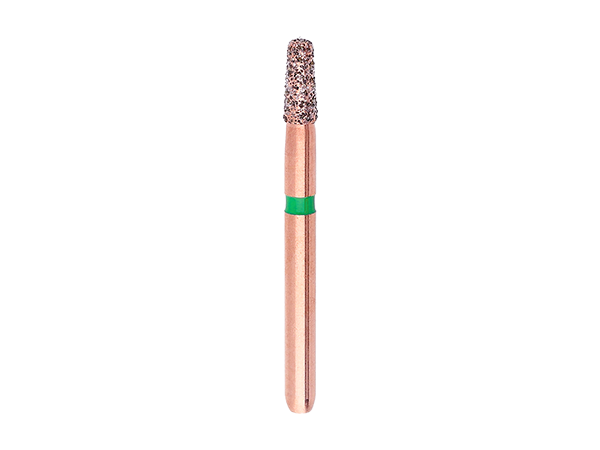

The DIAO - KP6845KR is a short tapered modified shoulder coarse diamond used for crown preparation. Perfect your preps with Komet's DIAO, a next-generation diamond designed with pearls for precise cutting, excellent control and long-lasting sharpness.
Features:
- Easy control to remove material quickly and effortlessly, without the chatter
- Produces less heat and saves healthy tooth structure
- Efficiently removes tooth structure with less pressure and more control
- Reduces dental build up, making it easier to clean and reprocess
- Easily identify DIAO with its rose gold color
Directions for use:
- Use at an optimum speed of 160,000 rpm, preferably in a red contra-angle or, alternatively, in a turbine. Instruments subject to a speed limit of 300,000 rpm are not authorized for use in a turbine (e.g., KP6370.314.030/035 or KP6845KR.314.025—see information on the label).
- Always provide sufficient spray cooling of at least 50 ml/min.
- For good preparation results, the surface should be smoothed with a finisher of matching shape after the initial preparation.
- The instruments remove substance very effectively. Therefore, only low pressure (< 2 N) needs to be applied during use.
Efficiency Created from Diamonds and Pearls.

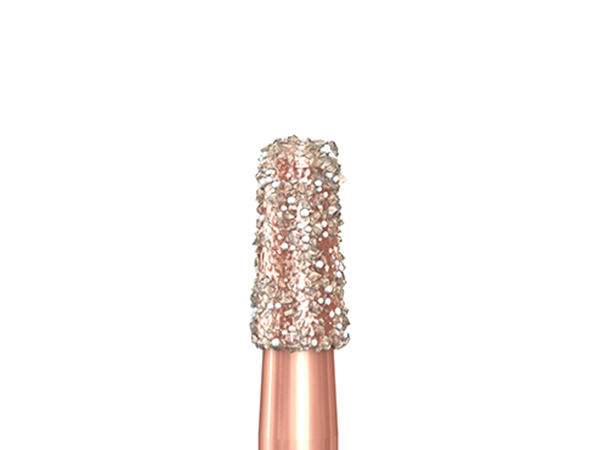

The innovative diamond coating of DIAO burs is interspersed with ceramic pearls. This concentrates pressure on the tips of the diamond grains, greatly increasing their cutting efficiency.
34% Longer average service life 27% Greater initial sharpness
*Source: Komet Dental test laboratory, mechanical cutting test, 2020.
DIAO is a next-generation diamond bur interspersed with ceramic pearls to provide excellent control, extreme durability and easier cleaning. On average, DIAO is 27% faster and lasts 34% longer than traditional instruments* *Source: Test lab Komet Dental, mechanical cutting tests 2020
Friction Grip:
- KP6845KR.314.018: 5-Pack (Item Number: 1902137)
- KP6845KR.314.025: 5-Pack (1902138)
View the CRD DIAO Product Sheet.
View the DIAO Brochure.
View the DIAO to S-Diamond Conversion.
View the Why I Use DIAO - Article by Dr. Bizga - May-June 2023.
View the DIAO Product Evaluation by DPS.
